Façade Systems

Schüco TropTec SC 50.NI

Aluminium mullion/transom construction – excellent appearance combined with energy efficiency, flexibility and efficient fabrication

The non-insulated Schüco TropTec SC 50.NI façade system enables large units with maximum glass formats, and is also perfectly suited to use in particularly stormy regions with heavy precipitation. The aluminium mullion/transom system offers an elegant all-glass look with cover caps running along the circumference on the façade side and narrow aluminium profiles on the room side.


Fully certified and highly flexible
The façade system meets the most stringent of testing requirements and thus ensures the highest level of reliability for developers, fabricators and users. Diverse façade solutions can be implemented thanks to the flexibility and the seamless integration of insert units.

Schüco TropTec SC 50.NI with Schüco TropTec AW 58.NI insert unit
Schüco TropTec SC 50.NI with single glazing

Schüco TropTec SC 50 SG.NI

Structural glazing façade system with attractive all-glass outside view and slimline profile face widths on the room side

The Schüco TropTec SC 50 SG.NI façade combines an exclusive design with energy efficiency and high flexibility as well as economical fabrication. The mullion/transom constructions, which can bear considerable loads, have been designed to satisfy the specific requirements of markets in tropical climate zones.

As well as elegant and modern all-glass façades, a semi-structural glazing option with horizontal or vertical cover caps can also be created from the system.

Comprehensively tested, certified and highly flexible
The Schüco TropTec SC 50 SG.NI all-glass façade system has been comprehensively tested and certified. Thanks to the flexibility and variability in the creation of the systems as well as seamless integration of insert units, diverse façade solutions can be implemented.

Schüco TropTec SC 50. SG.NI with Schüco TropTec AW 58.NI insert unit, all-glass look
Schüco TropTec SC 50 SG.NI with single glazing,
semi-structural-glazing look and horizontal emphasis

Schüco TropTec UC 65 SG.NI

Prefabricated, floor-to-ceiling façade units with structural glazing look for a timeless, attractive building design

Thanks to its high level of prefabrication, the modern Schüco TropTec UC 65 SG.NI all-glass unitised façade offers decisive advantages in terms of quality, cost-effectiveness and cost reliability. Time-saving installation also ensures faster completion of the project. The design of the Schüco unitised façade is impressive and can be planned very flexibly. Architecturally and visually outstanding building designs can be created with its attractive all-glass outside views and extremely narrow face widths.

Perfect system basis for diverse project solutions
Schüco TropTec UC 65 SG.NI is the perfect system basis for a wide range of project solutions. In addition to the small basic depth of only 160 mm, it offers many options for the integration of spandrel panels, window units and system-specific external solar shading systems. The comprehensive range of system benefits is completed by simple pre-fabrication, fabrication and installation thanks to profiles with butt joints.

Schüco TropTec UC 65 SG.NI with Schüco TropTec
AW 58.NI insert unit
Schüco TropTec UC 65 SG.NI with single glazing

Schüco TropTec AW 48.NI

Versatile façade insert unit for a broad range of mullion/transom applications

Thanks to extremely small face widths on the room side and perfect compatibility, the Schüco TropTec AW 48.NI projected top-hung window can be integrated seamlessly in the mullion/transom façades of the Schüco TropTec SC 50.NI and Schüco TropTec SC 50 series.

Best system quality „made in Germany“
A further benefit of the Schüco insert unit system is the wide range of fittings and locking options, which allow customised solutions for diverse market requirements, wind resistances and unit formats. The comprehensively tested and certified system properties of the projected top-hung windows, together with the considerably reduced number of components, ensure the highest level of security and quality for developers, fabricators and users. In this way Schüco TropTec AW 48.NI delivers leading German engineering at local market prices.

Schüco TropTec AW 48.NI in Schüco TropTec SC 50.NI
Schüco TropTec AW 48.NI in... Schüco TropTec SC 50 SG.NI with double glazing

Schüco TropTec AW 58.NI

Projected top-hung insert units for demanding façade projects with the highest of requirements

The Schüco TropTec AW 58.NI has been specially developed for markets in tropical climate zones. The reduced number of components and the comprehensively tested and certified system properties ensure the highest level of security and quality for developers, fabricators and users.

Perfect solution for diverse requirements
Thanks to the large selection of fittings, Schüco TropTec AW 58.NI is the perfect solution to all market requirements. The double glazing of the projected top-hung windows has the highest wind resistance values whilst retaining a slimline appearance. The insert unit therefore fits harmoniously into the mullion/transom and unitised façades from the Schüco TropTec series.

Schüco TropTec AW 58.NI in... Schüco TropTec UC 65 SG.NI
Schüco TropTec AW 58.NI in... Schüco TropTec SC 50.NI with double glazing

Schüco Façade UCC 65 SG

Combines the high-quality appearance of an all-glass façade with the efficient construction of a high-performance unitised façade

Schüco Façade UCC 65 SG (Unitised Customised Construction) is a flexible and powerful modular system for unitised façades. The main difference between this system and special constructions is the system components approved by renowned test institutes. All other components can be tailored perfectly to the façade, around these components, on an individual project basis.

The Schüco UCC 65 SG unitised façade looks impressive on the outside with the expansive appearance of an all-glass façade. On the inside, its design is that of a unitised façade with narrow face widths of only 65 mm. With the Schüco AWS 114 windows series, large insert units are possible as projected top-hung or parallel-opening windows with vent weights of up to 250 kg. Construction with stepped insulating glazing ensures seamless integration into the façade. Particularly efficient fabrication and installation is assured due to the unitised construction.

Schüco Façade UCC 65 SG detail view

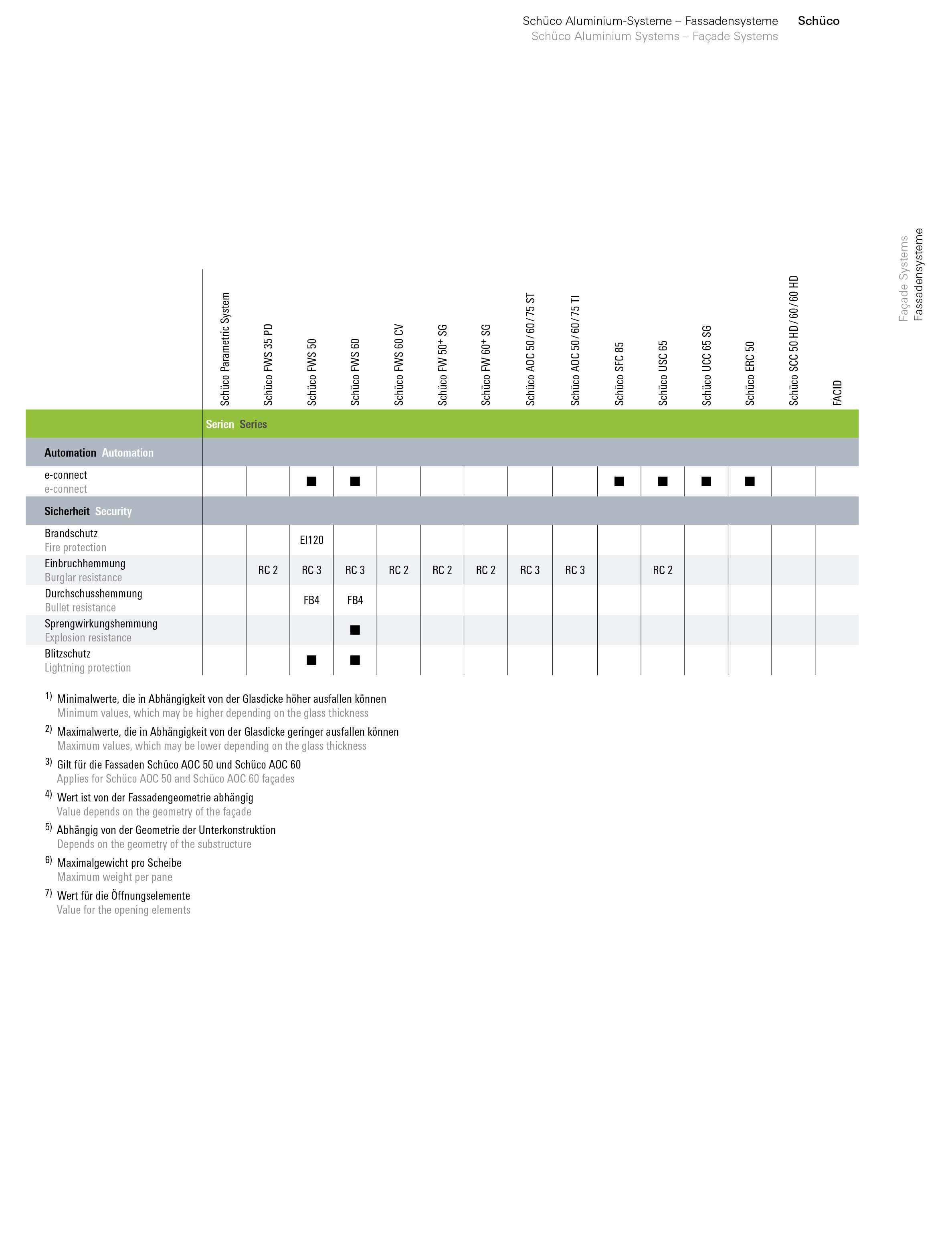

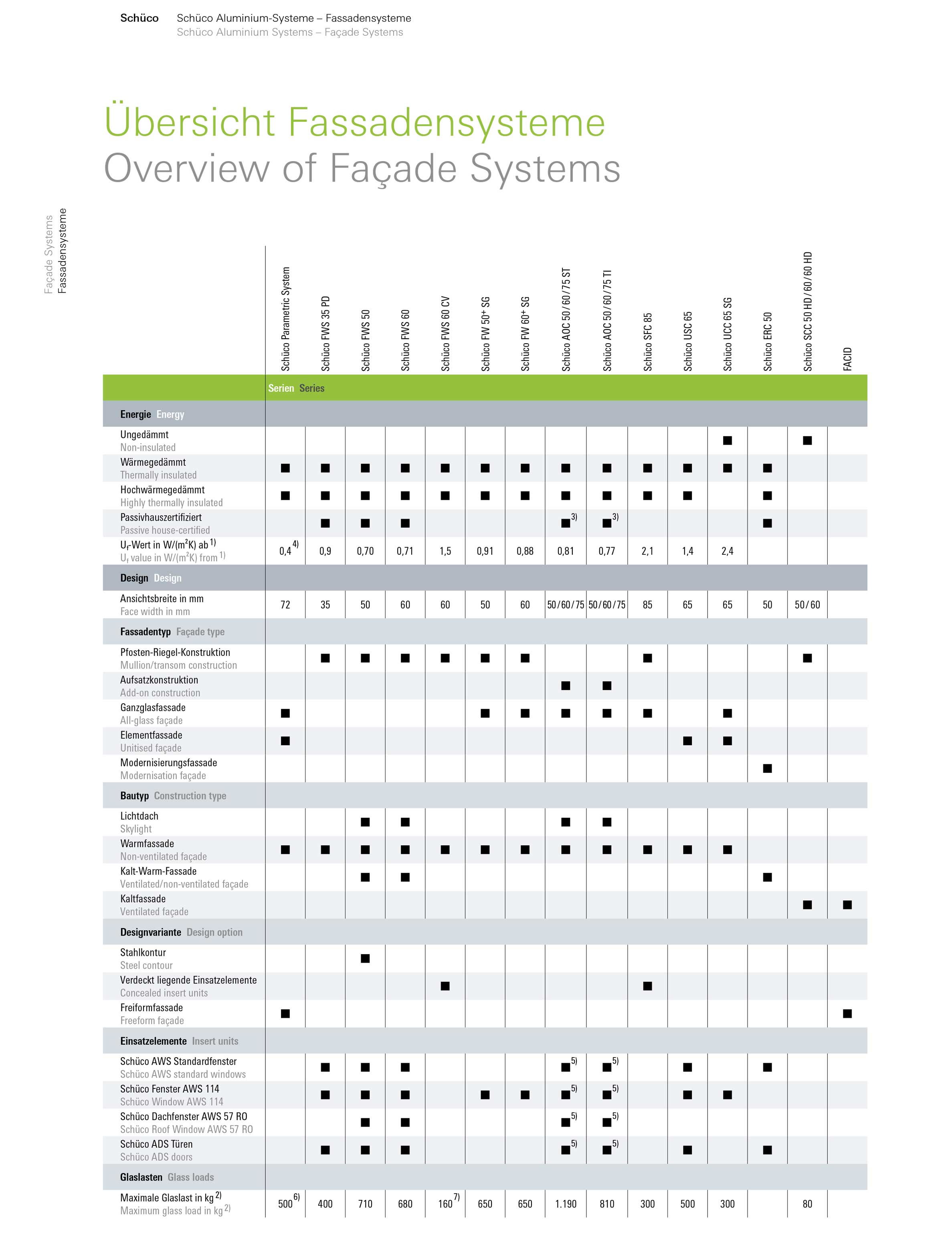

Overview of Facade Systems
Overview of Facade Systems
