Hormann Product Range

Brochure
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

Commercial / Institutional / Industrial

Fire rated doors
Fully Glazed fire rated doors
High Speed doors
Rollmatic doors
Scientific doors
Louvered doors

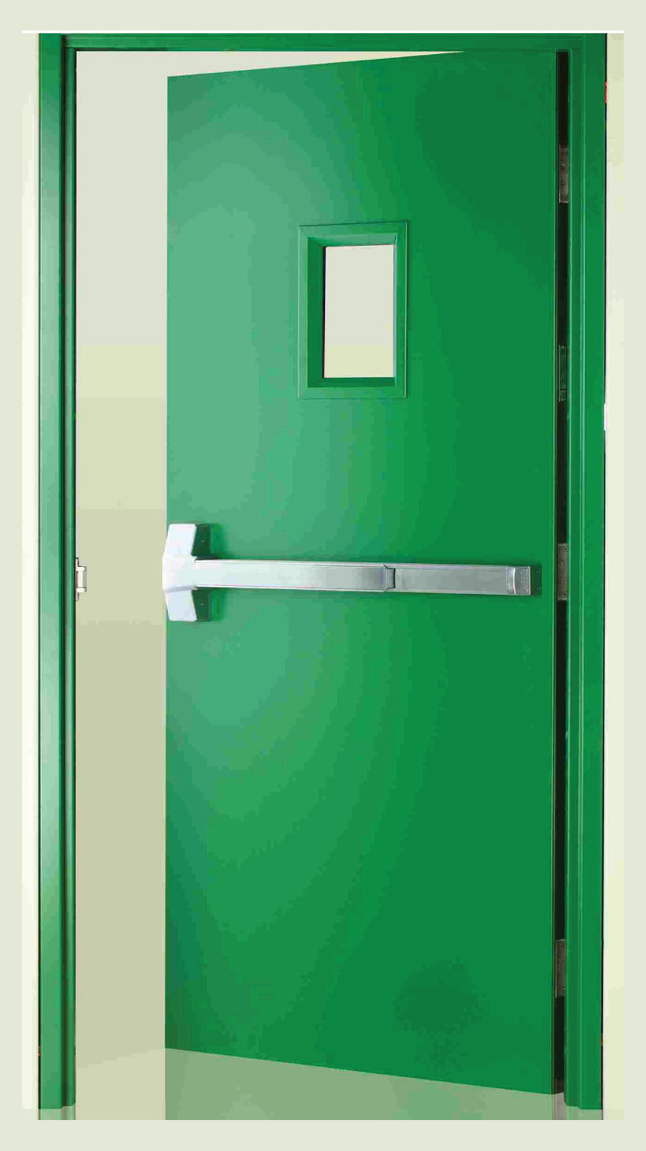

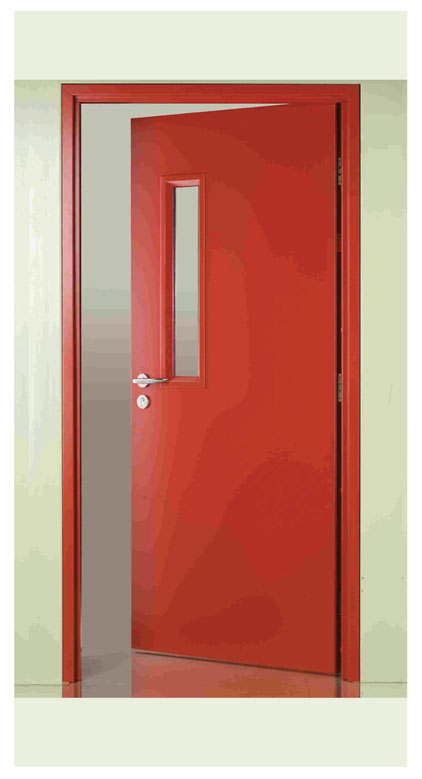

FIRE RATED DOORS

Hörmann is committed to highest standards of safety, performance, and quality. Our Fire Doors are tested, evaluated or certified as per nationally and internationally recognized standards at premier testing labs. They are tested to withstand extreme conditions for longer durations to ensure complete safety.

Design Highlights

  • Available in galvanised or stainless steel.
  • Label doors for 45, 60, 90, 120 and 180 minutes.
  • Clear vision lite for up to 120 minutes fire rating.
  • Groove frame profile for air tight sealing.
  • Factory prepped to receive all types of hardware.
  • High aesthetic and robust structure.
  • Easy to install on a flush wall opening & dry wall partitions.
  • Factory finished for primer and paint finishes.

Optional Features

Wood Grain can be provided as an optional finish.

Single Source

Hormann advises door, door shutters and hardware from one source!

Door Elevations
  • Elevations shown below are standard.
  • Vision panel sizes are based on fire rating.

Variants

  • Mitre joint
  • Butt joint
  • Welded
Options
  • Architrave on one sidemm
  • Architrave on both sides

Sheet Thickness (Profile Depth)

  • Up to 150mm - 1.2mm
  • 151 & above - 1.6mm

Frame Depth

  • Max : 350mm
  • Min : 50mm

Smoke Seal

  • PVC seal for non fire rated
  • EPDM gasket for fire rated
