ASS 39 PD NI

FEATURES

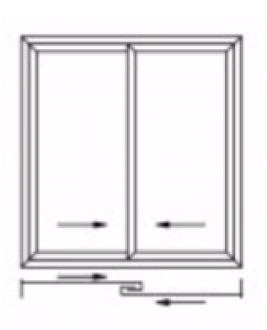

• Non-insulated sliding system with maximum transparency and light penetration due to the outer frame which is integrated in the building structure
• Handle-free system solution: clean and minimalistic design
• Floor-to-ceiling glazing units: maximum transparency and aesthetic design
• Innovative, detachable guide rail system
• Integrated pull grip for an elegant, homogenous design
• Simple and fast cleaning and maintenance of the rollers without removing the vent

Performance Parameter	Testing Value	Testing Standard
Water tightness	Upto Class 7A (300 Pa)	EN 12208
Wind load resistance	Upto Class C2/B2 (800 Pa)*	EN 12210
Air permeability	Class 3 (600 Pa)	EN 12207

* Higher windload capacities can also be customized

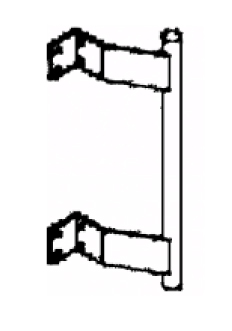

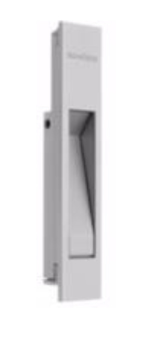

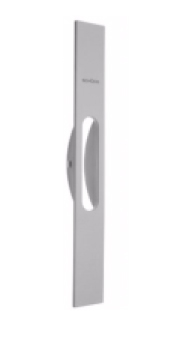

Type	Handle recess for retaining catch	Retaining Catch	Pull Handle
Color	RAL 9005, RAL 9010, RAl 9016, C0	RAL 9005, RAL 9010, C0	INOX
