ASS 50 NI

FEATURES

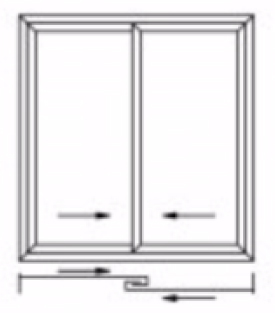

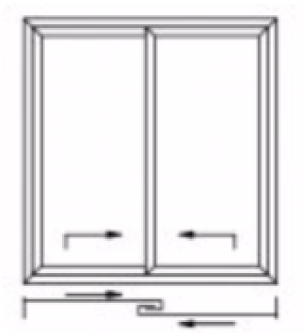

• Non-thermally broken sliding and lift-and-slide system, proportionately less frame to more glass
• Flat outer frame profile as continuous frame
• Outer and vent frames are mitre cut on all corners
• Burglar resistance class WK2 in accordance with DIN V EN V 1627*
• Smooth, quiet operation of sliding units

Performance Parameter	Testing Value	Testing Standard
Wind load resistance	Class C3 (1200 Pa)	EN 12210

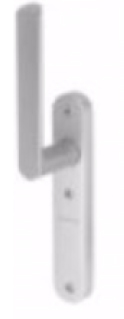

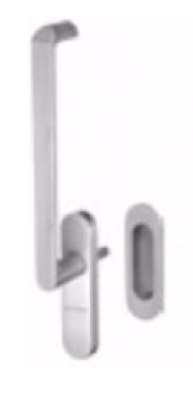

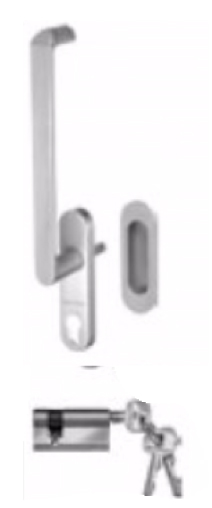

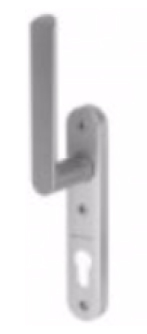

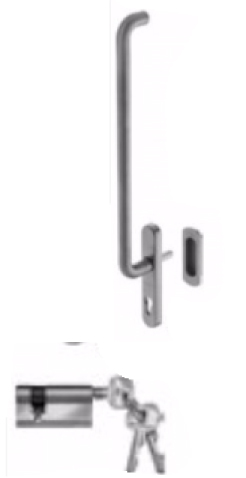

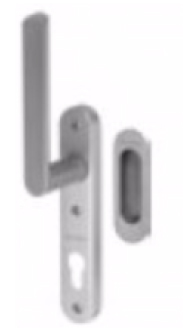

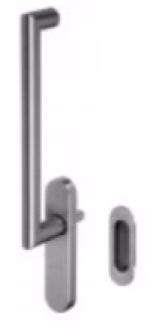

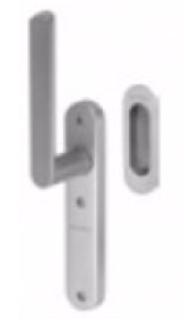

Types of handle	Handle without profile cylinder recess	Handle without profile cylinder recess, with handle recess	Handle with profile cylinder recess	Handle with profile cylinder recess, with handle recess
Color	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX

Handle Options for Lift and Slide System
Types of handle	Crank handle without profile cylinder recess, with handle recess	Crank handle with profile cylinder recess, with handle recess	Crank handle without profile cylinder recess, with handle recess	Crank handle with profile cylinder recess, with handle recess	Crank handle removable
Color	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX	Color: C0, RAL 9005, RAL 9010, RAL 9016, INOX
