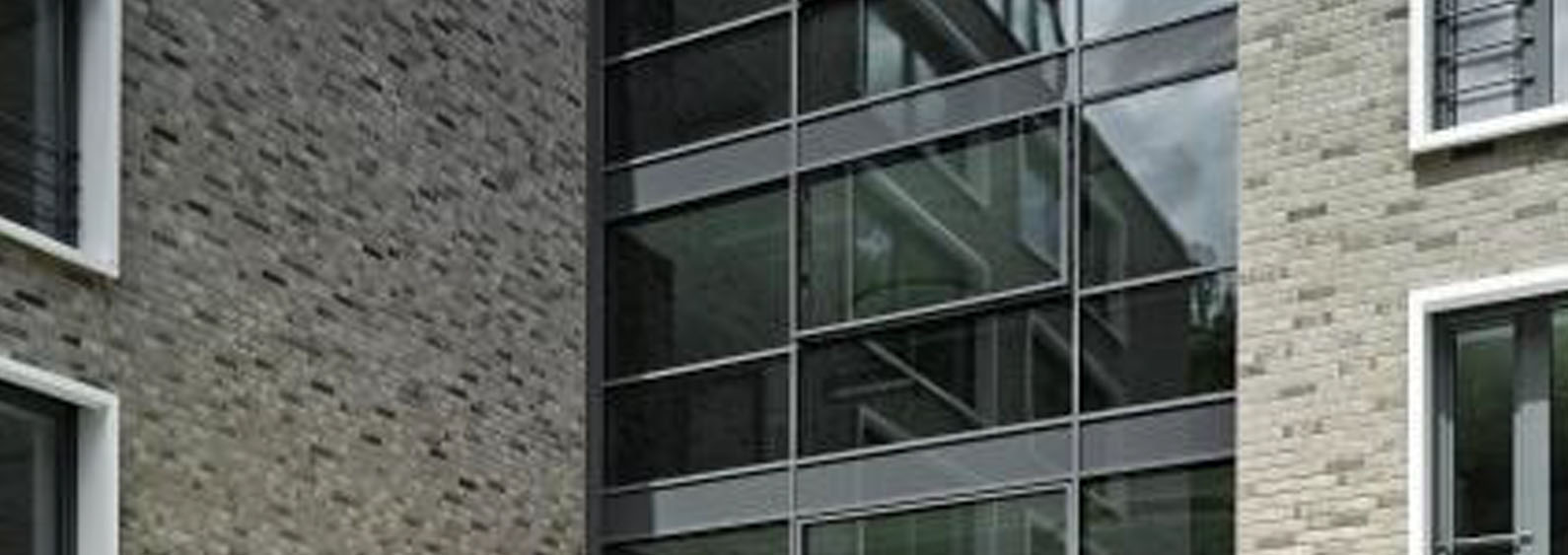

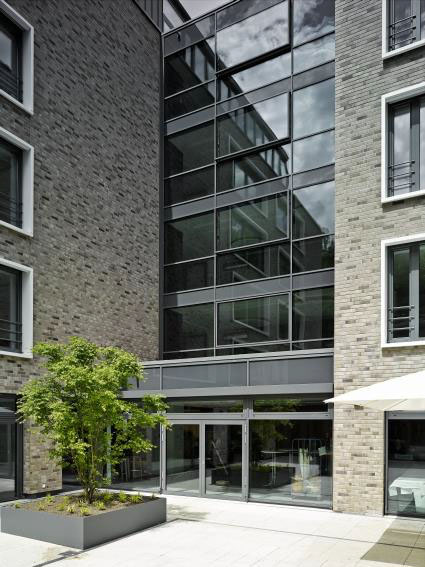

FWS 50

FEATURES

• Transom and mullion profiles are available in graduated dim. to meet varying structural requirements
• All load-bearing profiles have a narrow face width of 50 mm and have small radiused edges
• Aluminium cable channel for mullion/transom for subsequent installation on the profiles. Cable channel cover available in two design variants
• Overlapping drainage principle as overall ventilation and drainage or as field ventilation and drainage
• System-based security to RC 2/RC 3/FB4
• Special profiles are available for vapour barrier and wall attachment and for attachment to existing substructures, plus a range of insert units (block vents, ventilation vents, doors, roof vents, block constructions) and façade fixing brackets
• Base profile for simple ribbon window constructions, and for the transition to the ventilated façade

Parameters	Values
Face width	50mm
Dimensions	Level 1 transom, 6 - 255 mm basic depth Level 2 transom, 84 - 149 mm basic depth Level 3 mullion, 50 - 250 mm basic depth
Maximum Weight	Glass load upto 910Kgs
Glass Thickness	4mm - 62mm

Parameter	Testing Value	Testing Standard
Air Permeability	Class AE (>600 Pa)	EN 13830
Water tightness	Upto Class RE1200 (>600 Pa)	EN 13830
Air borne sound insulation	720 Pa	Upto 48 dB
Windload	2000 Pa	EN 13116:2001-07
