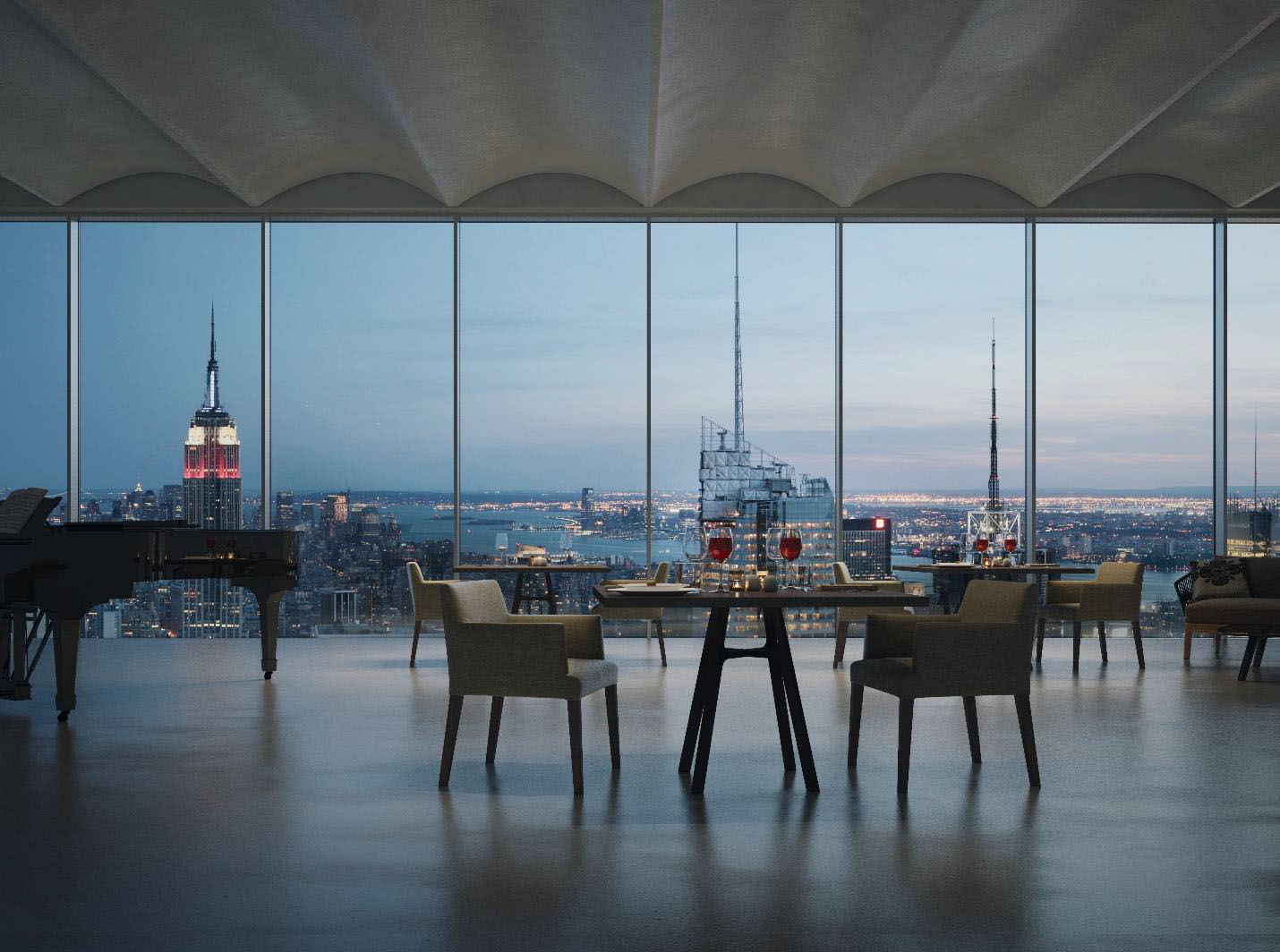

FWS 35 PD

FEATURES

• Highly thermally insulated façade system with optimum thermal insulation properties including
  1. Pre-assembled pressure plate with reflective surface to minimize energy losses due to thermal radiation
  2. Passive house-certified system by the Passive House Institute in Darmstadt (Germany)
• All profiles have a narrow face width of just 35 mm and have an edge radius of 0.5 mm
• Can also be used as a spandrel transom with the possibility of applying cladding to the inside
• Overlapping drainage principle with 3 levels, for controlled ventilation of the system
• Identical internal gasket system with gasket sizes of 9, 11 and 13 mm, just like the
• Continuous system for attachment to the building structure with colour coding for simple and fast installation on site

Parameters	Values
Face width	35mm
Dimensions	Level 3 mullion: 65 - 150 mm basic depth Level 1 transom: 70 - 155 mm basic depth Level 2 transom 84 - 149 mm basic depth
Maximum Weight	Glass load upto 440Kgs
Glass Thickness	22mm - 50mm

Parameter	Testing Value	Testing Standard
Air Permeability	Class AE750	EN 12152:2002-02
Water tightness static	Class RE1200	EN 12154:1999-12
Water tightness dynamic	720 Pa	AAMA 501.1-05
Windload	2000 Pa	EN 13116:2001-07
