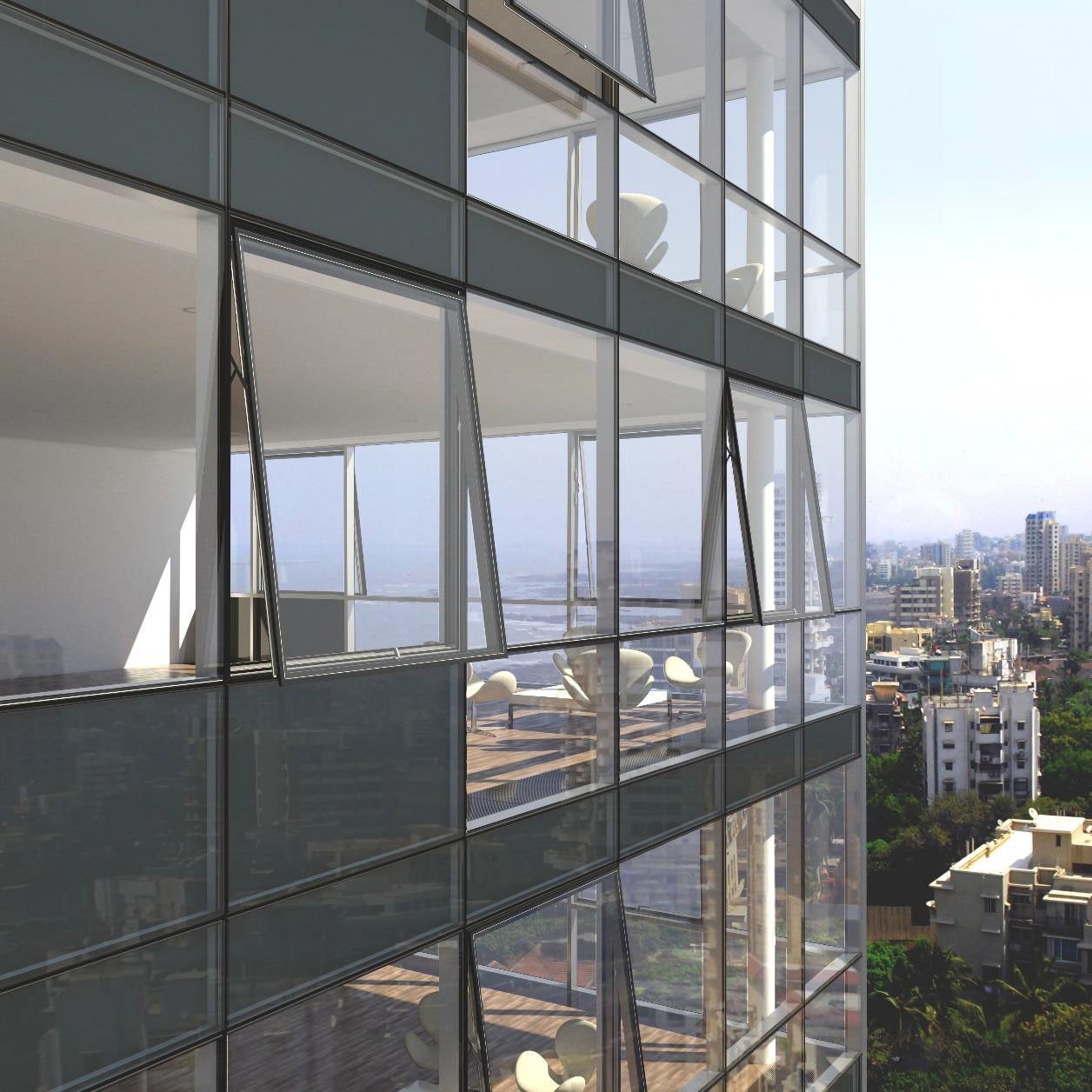

Troptec SC50 SG Ni

FEATURES

• Proven quality in accordance with AAMA system testing
• Flexible system with attachment detail solutions (building) and interfaces (insert units, external solar shading)
• Complete range of products from Schueco
• Time-saving ladder construction with spring bolt T-cleat

Parameters	Values
Face width	50mm
Maximum Weight	Upto 150Kgs
Glass Thickness	Single Glazing - 5/6mm, Insulating Glass -22-24mm

Parameter	Testing Value	Testing Standard
Wind load resistance	2650 Pa	ASTM E 331
Static Air Leakage Infiltration	600 Pa	ASTM E 283
Static Water Penetration	720 Pa	ASTM E 331
Airborne sound insulation	Upto 50 dB, depending on glazing thickness	DIN EN 14351-1

Thermal transmittance in accordance with DIN EN ISO 10077

Dry Sealing

Glass Thickness (mm)	Height x width (m)	Profile depth	Face width	Uf	Ucw	Ug
5	1.35 x 2	120	50	4.43	5.7	5.8
22	1.35 x 2	120	50	3.33	3.8	3.3
24	1.35 x 2	120	50	3.23	3.8	3.3

Wet Sealing

Glass Thickness (mm)	Height x width (m)	Profile depth	Face width	Uf	Ucw	Ug
5	1.35 x 2	120	50	3.93	5.7	5.8
22	1.35 x 2	120	50	2.33	3.8	3.3
24	1.35 x 2	120	50	2.23	3.8	3.3
