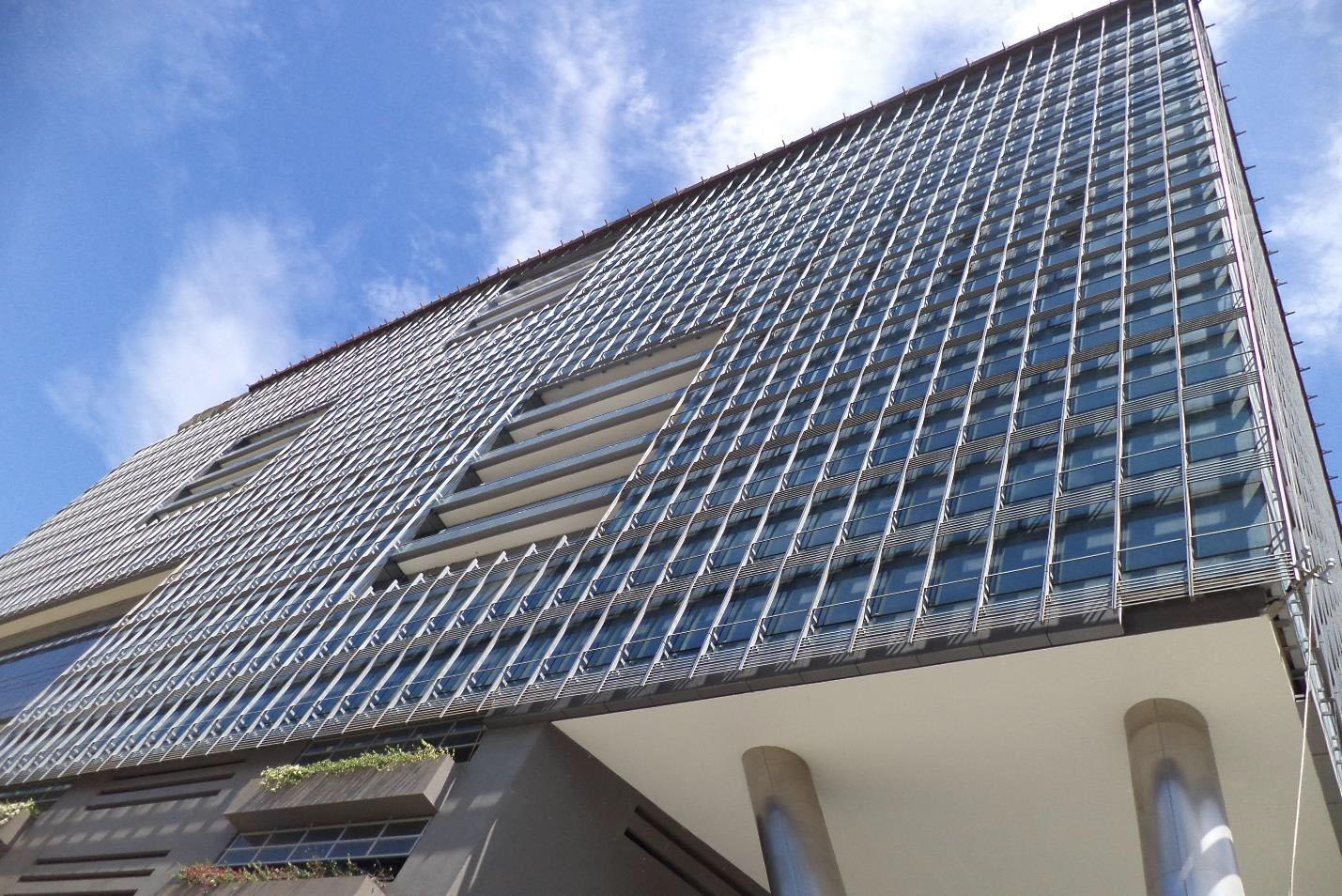

Troptec UC 65 SG NI

FEATURES

• Unitised construction means particularly efficient fabrication and assembly
• Particularly slim face widths up to 65 mm vertically and 65 mm or 74 mm horizontally
• Fine joint gaps of 10 mm vertically and 10 and 20 mm horizontally
• Overlapping drainage system and 2-chamber principle ensure excellent weathertightness
• Shaped components for fixing electrical wiring in the continuous frame profiles of the unitised façade

Parameters	Values
Face width	65mm
Specifications	Maximum width (mm) Maximum Height (mm) 1350 3600
Maximum Weight	Upto 250Kgs
Glass Thickness	26mm - 36mm

Parameter	Testing Value	Testing Standard
Air Permeability	600 Pa	EN 13830
Watertightness	Upto RE 1200 (>600 Pa)	EN 13830
Windload	800 Pa	EN 13830
